SS-1200TPQ/SS-1800TPQ/SS-2000TPQ
Intelligent template milling cutting machine
Keywords:
Pre-sewing equipment
Product Description
- Product Description
-
Intelligent template milling cutting machine
This inkjet printing with cuting is a multi-function machine with printing and cutting garment patterns. it use general HP45 type ink cartridge, the ink head is disposable, no need special maintenance. Intelligent electronic spring cutter control system Knife moving accurate, cuting smooth, dedicated circuit and motor drive system, to ensure continuous operation stability. Large LCD screen, English control panel, real-time control, simple and
accurate.
Eficient : Using the software to control the digital camera to take and preview the pictures ,automatic add all pictures to the software for post-processing. Using the digital cameras and scanners to take the pictures directly Input all the pictures to the software to do the post processing.
Accuracy: The unique features of the extraction supporting line smart pen tool with the unigue inteligence absorption features graphics editing feature to ensure the accuracy.
Visual interface: From the computer screen can check the diference between the oriainal arament pieces and the compare
Compatibility: Directly generate the format file which compatible with our garment CAD software.Model SS-1200TPQ SS-1800TPQ SS-2000TPQ Material width >80cm-<130cm >120cm-<190cm >140cm-<210cm Max cutting width 1100mm 1700mm 1900mm Max printe width 1200mm 1800mm 2000mm Paper feeding and
colltet modeBack side feeding Double paper feeding system,Front paper Paper type Applicable to CAD drawing papersuch as roller type
marking paper,kraft paper,new paperCutter material Applicable to CAD drawing paper such as roller type marking paper,
kraft paper, new paper(≥40≤250g/M2)Serial interface Network interface(tcp) serial interface (RS232) Udisk Printe speed Suqare meter/hour Max cut printe speed 1200mm/sec Buffer capacity 8200KB Domain Sample cutting in clothing, bags, interiors, toys and other industries Voltage and capacity 220V±10% 50HZ/0.8KW Machine size(LxWxH) 1980×650×945mm 2580×690×945mm 2780×690×945mm Packing size(LxWxH) 2000×570×645mm 2680×570×645mm 2880×570×645mm
The above performance parameters are subject to change without prior notice. Please contact our company.

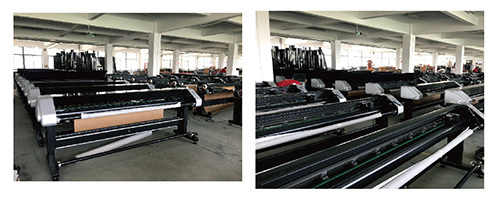

Product Testing
