SS-180EMPH/SS-200EMPH/SS-220EMPH
Inkjet plotter
Keywords:
Pre-sewing equipment
Product Description
- Product Description
-
Inkjet plotter

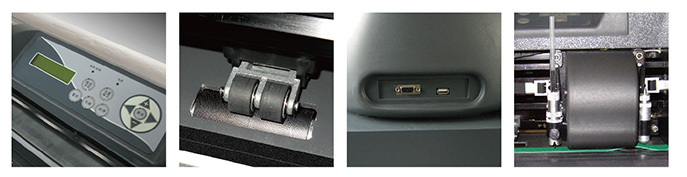

It adopts the universal HP45 type ink cartridge, the ink head can be discarded, without special maintenance and many other advantages. With high performance ARM7 processor, fast operation, combined with the use of dedicated high-speed motor drive control system, the whole closed-loop positioning, high control accuracy, fast operation, high resolution, not afected by the simplicity of graphics lines, uniform speed. Before printing, it can automatically detect the width of the bandwidth and give the ultra-wide prompt; on-line automatic printing.machine abnormal stop error code prompt, real-time monitoring of various operating conditions. it has independent output management system and can connect various standard documents of CAD software.
Model SS-180EMPH SS-200EMPH SS-220EMPH Effective print width 180cm 200cm 220cm Paper width >130-<230cm Operating interface Large screen LCD. Chinese operation panel Number of sprinklers Double nozzles (HP45) Interface Language HP-GL Draving Language Communication interface Serial Port/USB Direct Connection, Bupport U Dis k Ourput Supply voltage AC220V/50-60Hz Drawing speed Two way 80 square meters per hour Paper feed ing system Front-and receiving and delivering paper, invisible infrared control system Readving power 150Dp-600Dpi( lnk- saving mode is optional) Print Head Cleaning Automatic cleaning function of ink head Paper type Drum marking paper. CAD drawing paper (30-60 grams)
