SS-1215BJM/SS-9015BJM
Intelligent template milling cutting machine
Keywords:
Pre-sewing equipment
Product Description
- Product Description
-

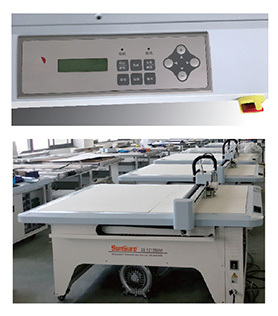

Intelligent template milling cutting machine
1) This machine is a mulifunctional model that integrates drawing, sample cuting, and template sloting; The template software can freely design thelemplate, and he template can be grooved direcly to quickly generate the template, which replaces the compicated and tedious process of tradilionamanual operation;
2) it can import all kinds of DXF/PLT and other paper pattern files, and use these files to quickly produce the process of template fles,
3) According to the existing paern fle,use the sloling tool to select the necessary lines, and setthe sloling width, ofset and other data to automaicaly slot
4) Automaticaly generate the template frame, and you can choose the frame type (rectangle, convex hull contour, contour line, etc.);
5) Provide a grading system, the operation is faster, more convenient and accurate;

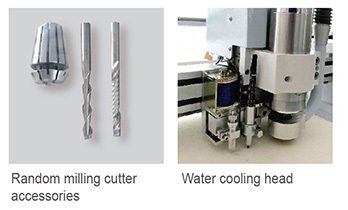

6) After the software design template is completed, it can be directly oulput to the laser culting machine through the material arrangement system.Model SS-9015BJM SS-1215BJM Max working area(WxL) 900×1500mm 1200×1500mm Max speed Pen speed:1000mm/s, Knife speed:0-800mm/s Material fix form Vacuum adsorption air pressure plate Cut material PVC rubber plate, acrylic plate, epoxy resin plate,yellow thick cardboard, white cardboard, kraft paper Milling cutter motor water cooler 800w standard model With nverter adjuststhe speed, and the optional high speed spindle is 40.000 PEN/TOOLS Gel pen/alloy steel knife/single-blade multi-blade milling cutter Knife handle diameter 3.175mm,4mm Serial interface Network interface (tcp) serial interface (RS232) Udisk Cut thickness ≤4mm Display LCD display touche point Dust collect mode 220V/1.5KW,Brand Powerful Vacuum Cleaner 1.5KW Voltage/capacity AC220+10%,50HZ.3.5KW Working environment Temperature 10-350℃ Humidity RH15-85%(WITHOUT CONDENSATION) Working feature With function of Pen drawing/pattern cutting/templatecutting in one unit .Can read standard HP.GL date Domain Garment luggage toys pattern cutter,Templte plate cutter Machine size(LxWxH) 1980×1420×1080mm 1980×1720×1080mm Packing size(LxWxH) 2200×1520×1150mm 2200×1820×1150mm
The above performance parametersare subject to change without priornotice. Please contact our company.
