SS-1660-II
Double head asynchronous intelligent cutting machine
Keywords:
Laser machine
Product Description
- Product Description
-
Double head asynchronous intelligent cutting machine
1. Omori double head asynchronous intelligent cutting machine,is to replace the market, shoe manufacturing enterprises traditional knife die punching process, designed an intelligent cutting machine, gantry double head asynchronous cutting design, high precision, strong stability.
2. This machine adopts independent research and development,cloud platform graphics processing software and multi-axis motion control integrated, intelligent cutting system, through the servo motor drive two groups of 4 punching all integrated cutter seat motion mechanism,high-definition double projection preview positioning, to carry out high precision cutting.★ The machine cuting punching integration, cutting precision high speed, zero error on the bottom,improve the standard ofthe cuting.
★ Frame integrated molding, strong stability, high precision, convenient movement, prolong the service life
★ imported ethercat bus servo motor,then cuting complex graphics can be timely response, greally improve the speed and quality of equipmentprocessing.
★impoted guide ra, screw, bearing,reducer, pneumatic components, to provide the whole machine with super long life and high precision operaion
★ Material fixing mode, importe divacuum pump inteigent automatic partlion vacuum adsorption,suitable for anytype ofmaterial use can efectively ix the material, and ensure cutting quality at the same time with energy saving and low noise.
★Using imported ethercat bus servo motor feeding, high precision, fast speed, low noise.

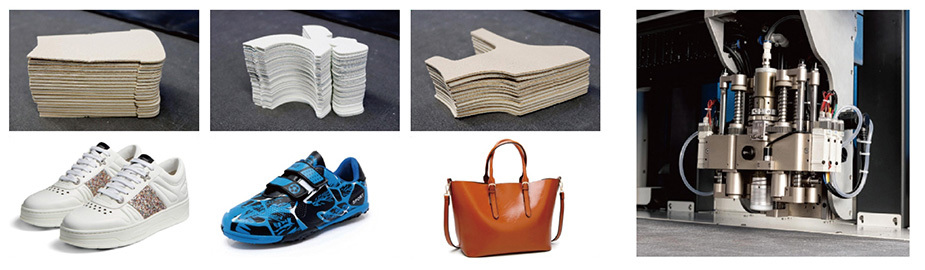

★ Equipped with development, low pressure pneumatic vibration tool head, 4 punching device, low noise and low energy consumption.Cuting material, microfiber, PU, genuine leather, sponge material, lexible material, hard material, class material.Suitable for mass production, small baich arder no arinding. improve the overall standard ofthe produc, a yarely of uses Shoren the producion cvcle for customers, save he tool die feesave the materia, savethe energy consumption, save the site, save the laborto reduce the producion cost, high qualty culing, cuting surface flat without rough edge.
Work areadimension 1600mmx600mm Machine size 3000mmx2300mmx2100mm Total power 9.5kw Machine weight 2350kg Double head/cutter Vibrating knife /2 sets,punching knife /8 sets Transmission system High precision lead screw/imported servo motor Operating characteristics Automatic transmission, intelligent paging, continuous and smooth operationefficient cutting, screw drive.double tool head asynchronous work Cutting material Multilayer rolled flexible materials (such as artificial leatherand various industrial cloths, etc.) Cutting speed 1-1100mm/s Cutting thickness Sponge materialss35mm,flexible materials20mm, hard materialss10mm Fixed material mode Inlet/vacuum adsorption Mechanicalresolution 0.05mm Instruction system Cam/intelligent cutting system Compatible format DXF/pltis compatible with universalformats Typesetting Automatic layout/automatic identification hole and inline/inteligent parametersadd code Cnc panel LCD.Keyboard,mouse Tool head vibration frequency 11.000-15.000RPM Operating voltage AC 220V±10%50/60HZ Fan operating voltage AC 380V±5%50/60HZ
