SS-M10/SS-M20
Fiber laser markingmachine
Keywords:
Laser machine
Product Description
- Product Description
-
Fiber laser markingmachine

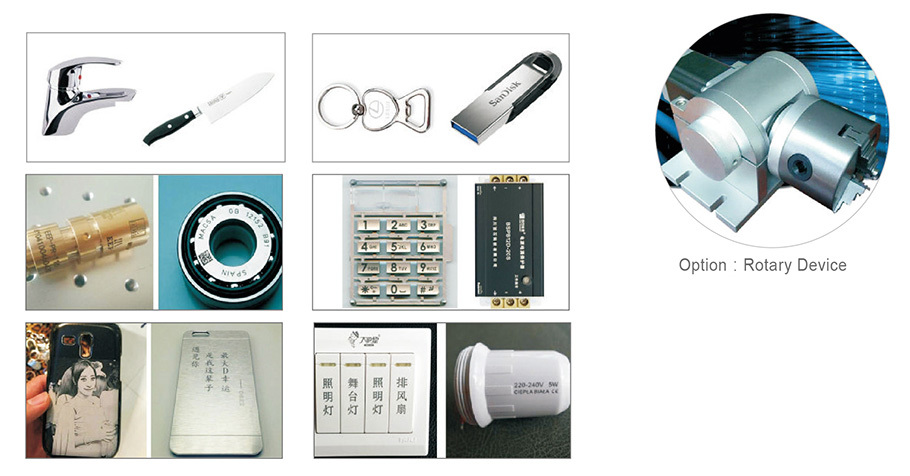

Material & Application
Mobile key,back-light button, molectron,metal products and so on.1)Less power consumption, less than 500W.
2)Small size, air-cooled , easy to carry and transport.
3) High electro-optical conversion rate, maintenance free.
4) High stability, easy to operate.
5)Broad application: barcode marking, two-dimensional code, textgraph regular and irregular transaction mark.
6)Multiple Marking form: Flying Marking, Line Printer, Rotating Marking , Multistage Marking.
7)Deep carved marking. Black marks on Al material.
8) Can be customized according to customer demand.
Model SS-M10/M20 Marking Area 110X110(Standard)/220X220 Laser Power 10W/20W(Standard)/30W Laser Frequency 20-100KHZ Beam Quality M2<1.5 Marking Speed 0-7000 mm/s Marking Depth 0.01mm-0.7mm Min line Width 0.01mm Repeat position accuracy ±0.003mm Power Supply AC220V+10% 50/60HZ Software EzcadSupport file formats : PLT, AI, DXF, DST.BMP, GIF,JPG,TIF
