SS-1290-I
Intelligent visual marking machine
Keywords:
Laser machine
Product Description
- Product Description
-
Intelligent visual marking machine
★High recognition accuracy
Recognition accuracy 0.25mm, repeat accuracy 0.2mm.★The camera distortion processing is powerful
Arbitrary deformation of the cut background repair, accurate positioning point★Intelligent matchine of cutting template
Intelligent pen pattern anchor point, accurate matching and deformation repair.★Multi-Color cutting synchronous processing
Accuracy 0.2mm.linteligent high-sped 3D digtal scanning technology, through high-precision industrial array and linear array cameras for visual positioning, servo motor driven high-precision motion mechanism,the use of international ultra-long life industrial grade(STP-5) 3D piezoelectric nozzle, automatic identification of shoe positioning and trajectory generation, No template, no plate change, scan out the sitching proces line, so that the whole oeraion proces to relize inteigent, automatic operation, replacing manual line drawingand screen printing and other traditional shoemaking process.
1) The dot matrix 3D scanning line segment is fast. and there is no requirement for the complex line seament of the vamp. At the same time, the scanning time of each version is increased to 20-30 seconds, Compared with the curent market is the track needle point spray efficiency greatly improved by 3-4 times.

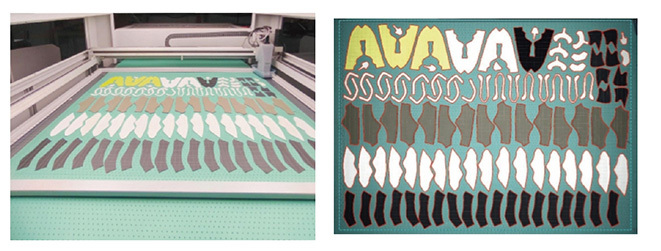

2) Different sizes of the cut can be scanned at the same time, no template, save the screen,tools, and storage screen space position.
3) The machine adopts super clear industrial array and linear array camera.
4)Ultra-accurate self-posioning, deformation matching system, industrial camera intelligent recognition, can achieve different products mixed line operation, scan the shoe upper line track accurate to 0.2-0.5mm, high yield, completely better than manual positioning operation.
5) Material operation conveying mode eliminates manual waiting time for discharging.
6) The ovenis optionaland can be customized according to the requirements of shoe materials.
Model SS-1290 Equipment size 3300X1950X2200 Drawing process Digital scanning Operating voltage AC110-220V/380V/50HZ Working area 1200*1000/1400*1100 Power 5.5KW/13KW/380V7.5KW Applied ink Fluorescentink, high temperature disappearink,erasable ink Working air pressure 0.5Mpa
